ZisK Overview

ZisK is a high-performance zero-knowledge virtual machine (zkVM) designed to generate zero-knowledge proofs of arbitrary program execution. It enables developers to prove the correctness of computations without revealing their internal state. ZisK abstracts the complexities of cryptographic operations by providing an optimized toolstack that minimizes computational overhead, making zero-knowledge technology accessible to developers.

Key features of ZisK include:

• High-performance architecture optimized for low-latency proof generation
• Rust-based zkVM with future support for additional languages
• No recompilation required across different programs
• Standardized prover interface (JSON-RPC, GRPC, CLI)
• Flexible integration as standalone service or library
• Fully open-source, backed by Polygon zkEVM and Plonky3 technology

ZisK converts RISC-V programs into provable form through a sophisticated pipeline involving emulation, witness generation, and constraint satisfaction.

System Architecture Overview

ZisK consists of several interconnected components that work together to convert programs into provable form, execute them, generate witnesses, and create zero-knowledge proofs.

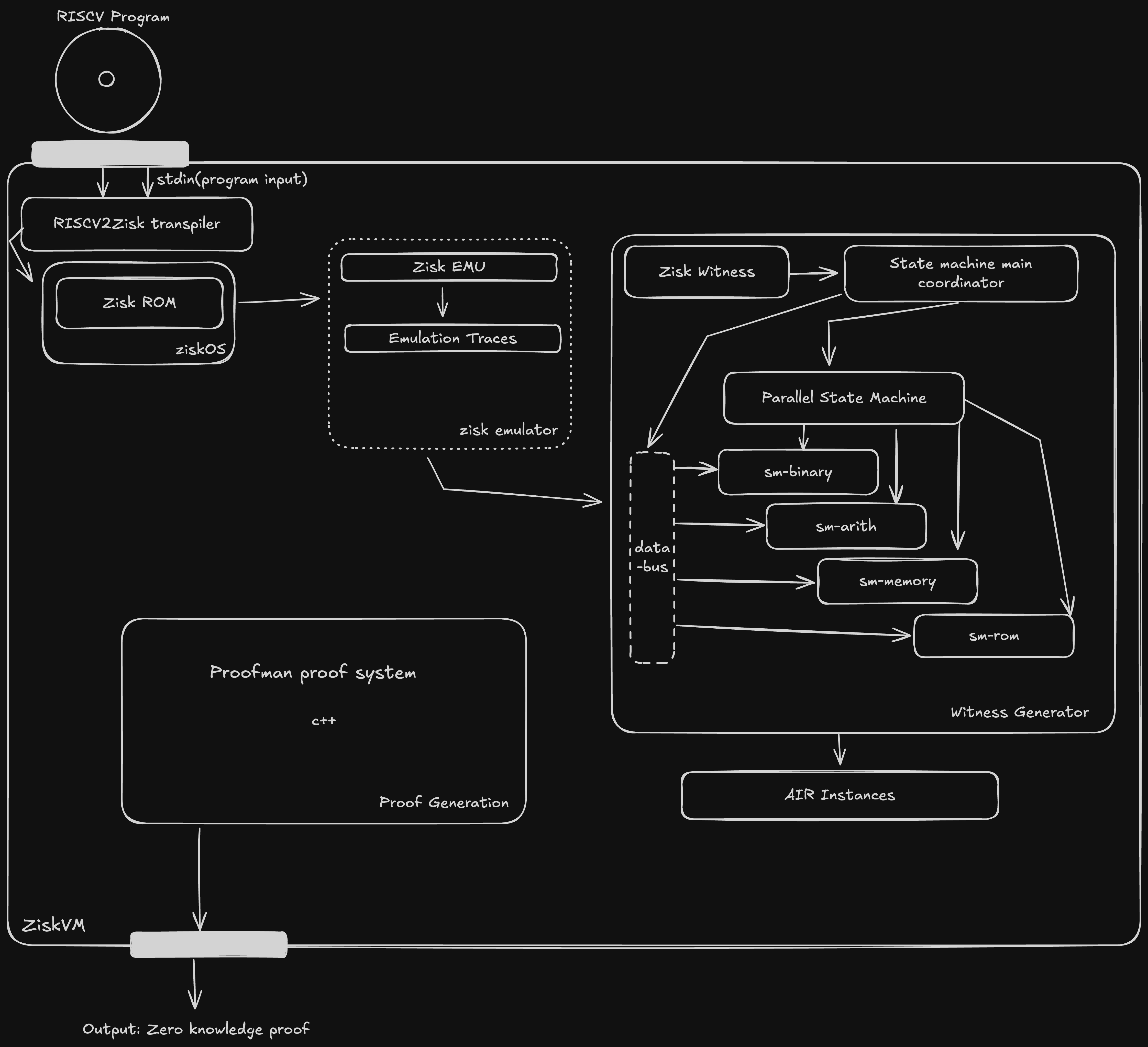

High-Level System Architecture

The ZisK system is organized into several key areas:

• Infrastructure: Core VM system and development toolchain
• Input Processing: RISC-V ELF files and transpilation
• Specialized State Machines: Parallel processing of different operation types
• Witness Generation: Coordination and AIR instance creation
• Core VM System: Fundamental execution and constraint handling

Core Components

State Machine Packages

Key Dependencies

The witness computation system integrates multiple specialized components:

• Precompiles: precomp-keccakf, precomp-sha256f, precomp-arith-eq for cryptographic operations
• External Systems: proofman-common, proofman-util, proofman-macros for proof management
• Field Arithmetic: p3-field, p3-goldilocks for finite field operations

Execution Pipeline

ZisK transforms RISC-V programs into verifiable zero-knowledge proofs through a multi-stage pipeline:

Execution Stages

1. Program Conversion: RISC-V ELF files are converted to ZiskRom format using the riscv2zisk transpiler
2. Emulation: The ziskemu emulator executes the program, generating detailed EmuTrace objects
3. Witness Coordination: The zisk-witness library processes traces through the sm-main coordinator
4. Parallel Processing: Specialized state machines handle different operation types simultaneously
5. AIR Generation: State machines produce Algebraic Intermediate Representation instances
6. Proof Creation: The proofman system converts AIR instances into zero-knowledge proofs

The data-bus component enables efficient communication between state machines during witness generation.

State Machine Architecture

ZisK uses a system of interconnected state machines to process different aspects of program execution. These state machines collectively ensure that all operations are properly constrained and verifiable.

Main State Machine (sm-main)

The sm-main package implements the central coordinator for witness generation. It processes execution traces from ziskemu and orchestrates interactions with specialized state machines.

Key dependencies:

• ziskemu: Receives execution traces
• zisk-core: Uses core types and definitions
• zisk-pil: Applies constraint definitions
• sm-mem: Coordinates memory operations
• asm-runner: Handles assembly execution

The main state machine divides execution traces into segments for efficient parallel processing and manages the overall witness generation workflow.

Specialized State Machines

Binary Operations (sm-binary)

Handles bitwise and logical operations through multiple sub-components:

• Binary basic operations (AND, OR, XOR)
• Binary extension operations (shifts, rotations)
• Lookup tables for operation verification

Arithmetic Operations (sm-arith)

Processes mathematical computations including:

• Addition and subtraction with overflow handling
• Multiplication and division operations
• Range checks and arithmetic constraints

Memory Management (sm-mem)

Ensures memory operation correctness through:

• Load and store operation tracking
• Memory consistency verification
• Address range validation

ROM Access (sm-rom)

Manages program memory access including:

• Instruction fetch operations
• Program counter management
• Read-only memory constraints

Communication and Coordination

All state machines communicate through the data-bus component, which provides:

• Operation Bus: Central message passing system with OPERATION_BUS_ID
• Parallel Processing: Enables concurrent state machine execution
• Constraint Synchronization: Coordinates PIL constraint evaluation

The zisk-witness library serves as the top-level orchestrator, managing the flow from emulation traces to final AIR instances.

Developer Workflow

Developers interact with ZisK through a structured workflow that abstracts the complexity of zero-knowledge proof generation:

Core Development Tools

Testing and Verification

ZisK includes comprehensive testing through the Riscof framework for RISC-V compliance:

1. Test Generation: Docker-based riscof test generation
2. ELF Conversion: Convert test ELF files to ZisK ROMs
3. Execution: Run tests through ziskemu
4. Verification: Compare output against reference RISC-V implementation

The testing process uses the ziskemu binary and specialized riscof configuration for automated compliance verification.

Development Status

ZisK is currently under active development and is not yet ready for production use. The system is being refined and expanded to support more features and optimize performance.

Key points about the current status:

• The software is not fully tested
• It is not recommended for production environments
• Additional functionalities and optimizations are planned for future releases
• Future updates may introduce breaking changes

For the most up-to-date information on ZisK's development status, refer to the official repository and documentation.
